Nieuw notebook

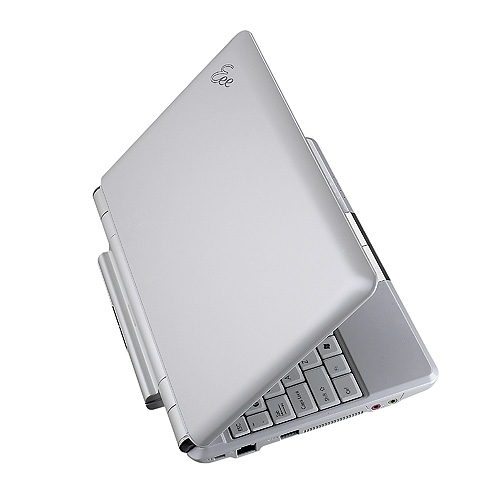

Asus 904HA

Inhoudsopgave:

Specs
Waarom
Software
Hardware
dmidecode
lspci
lsusb
Helaas
Links

Specs

Specifically designed for those who are constantly on the move and require a portable productivity companion the ASUS Eee PC series, the new Eee PC 904HA delivers a generous storage capacity in the form of 160GB SATA hard disk drives. The use of a SATA drive provides fast data transfers, and enables users to carry more data along with them than previously possible, while Intel Atom processor provides the muscle for productivity.

Waarom

Waarom een 904, nu de 901 is net iets te klein met het toetsenbord, en deze 904 heeft dus de kast van een 1000, maar de prijs van een 900. En dus een goed toetsenbord.

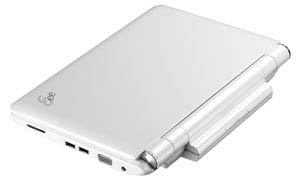

De accu is iets minder dan in sommige folders vermeld staat en steekt een lelijk stuk uit. Helaas.....

dmidecode

root@moon:~# dmidecode # dmidecode 2.9 SMBIOS 2.5 present. 30 structures occupying 1289 bytes. Table at 0x000F0710. Handle 0x0000, DMI type 0, 24 bytes BIOS Information         Vendor: American Megatrends Inc.         Version: 1803         Release Date: 03/03/2009         Address: 0xF0000         Runtime Size: 64 kB         ROM Size: 512 kB         Characteristics:                 ISA is supported                 PCI is supported                 PNP is supported                 APM is supported                 BIOS is upgradeable                 BIOS shadowing is allowed                 ESCD support is available                 Boot from CD is supported                 Selectable boot is supported                 BIOS ROM is socketed                 EDD is supported                 5.25"/1.2 MB floppy services are supported (int 13h)                 3.5"/720 KB floppy services are supported (int 13h)                 3.5"/2.88 MB floppy services are supported (int 13h)                 Print screen service is supported (int 5h)                 8042 keyboard services are supported (int 9h)                 Serial services are supported (int 14h)                 Printer services are supported (int 17h)                 CGA/mono video services are supported (int 10h)                 ACPI is supported                 USB legacy is supported                 LS-120 boot is supported                 ATAPI Zip drive boot is supported                 BIOS boot specification is supported                 Targeted content distribution is supported         BIOS Revision: 8.12         Firmware Revision: 10.96 Handle 0x0001, DMI type 1, 27 bytes System Information         Manufacturer: ASUSTeK Computer INC.         Product Name: 1000H         Version: x.x         Serial Number: 91OAAQ188562         UUID: 8026C450-D7E7-DD81-2828-00248C22A42C         Wake-up Type: Power Switch         SKU Number: 90OAM0SB51111J3VE10QQ         Family: To Be Filled By O.E.M. Handle 0x0002, DMI type 2, 15 bytes Base Board Information         Manufacturer: ASUSTeK Computer INC.         Product Name: 1000H         Version: x.xx         Serial Number: EeePC-0123456789         Asset Tag: To Be Filled By O.E.M.         Features:                 Board is a hosting board                 Board is replaceable         Location In Chassis: To Be Filled By O.E.M.         Chassis Handle: 0x0003         Type: Motherboard         Contained Object Handles: 0 Handle 0x0003, DMI type 3, 21 bytes Chassis Information         Manufacturer: ASUSTek Computer INC.         Type: Notebook         Lock: Present         Version: x.x         Serial Number: 0x00000000         Asset Tag: 0x00000000         Boot-up State: Safe         Power Supply State: Safe         Thermal State: Safe         Security Status: None         OEM Information: 0x00000000         Height: Unspecified         Number Of Power Cords: 1         Contained Elements: 0 Handle 0x0004, DMI type 4, 35 bytes Processor Information         Socket Designation: PBGA 437         Type: Central Processor         Family: <OUT OF SPEC>         Manufacturer: Intel         ID: C2 06 01 00 FF FB E9 BF         Version: Intel(R) Atom(TM) CPU N270   @ 1.60GHz         Voltage: 1.3 V         External Clock: 133 MHz         Max Speed: 1666 MHz         Current Speed: 1600 MHz         Status: Populated, Enabled         Upgrade: Other         L1 Cache Handle: 0x0005         L2 Cache Handle: 0x0006         L3 Cache Handle: 0x0007         Serial Number: To Be Filled By O.E.M.         Asset Tag: To Be Filled By O.E.M.         Part Number: To Be Filled By O.E.M. Handle 0x0005, DMI type 7, 19 bytes Cache Information         Socket Designation: L1-Cache         Configuration: Enabled, Not Socketed, Level 1         Operational Mode: Write Back         Location: Internal         Installed Size: 24 KB         Maximum Size: 24 KB         Supported SRAM Types:                 Other         Installed SRAM Type: Other         Speed: Unknown         Error Correction Type: Parity         System Type: Data         Associativity: Other Handle 0x0006, DMI type 7, 19 bytes Cache Information         Socket Designation: L2-Cache         Configuration: Enabled, Not Socketed, Level 2         Operational Mode: Write Back         Location: Internal         Installed Size: 512 KB         Maximum Size: 512 KB         Supported SRAM Types:                 Other         Installed SRAM Type: Other         Speed: Unknown         Error Correction Type: Single-bit ECC         System Type: Unified         Associativity: 8-way Set-associative Handle 0x0007, DMI type 7, 19 bytes Cache Information         Socket Designation: L3-Cache         Configuration: Disabled, Not Socketed, Level 3         Operational Mode: Unknown         Location: Internal         Installed Size: 0 KB         Maximum Size: 0 KB         Supported SRAM Types:                 Unknown         Installed SRAM Type: Unknown         Speed: Unknown         Error Correction Type: Unknown         System Type: Unknown         Associativity: Unknown Handle 0x0008, DMI type 5, 18 bytes Memory Controller Information         Error Detecting Method: 64-bit ECC         Error Correcting Capabilities:                 None         Supported Interleave: One-way Interleave         Current Interleave: One-way Interleave         Maximum Memory Module Size: 2048 MB         Maximum Total Memory Size: 2048 MB         Supported Speeds:                 Other         Supported Memory Types:                 DIMM                 SDRAM         Memory Module Voltage: 3.3 V         Associated Memory Slots: 1                 0x0009         Enabled Error Correcting Capabilities:                 None Handle 0x0009, DMI type 6, 12 bytes Memory Module Information         Socket Designation: DIMM0         Bank Connections: 0 1         Current Speed: Unknown         Type: DIMM SDRAM         Installed Size: 1024 MB (Double-bank Connection)         Enabled Size: 1024 MB (Double-bank Connection)         Error Status: OK Handle 0x000A, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J2A2         Internal Connector Type: None         External Reference Designator: USB1         External Connector Type: Access Bus (USB)         Port Type: USB Handle 0x000B, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J2A2         Internal Connector Type: None         External Reference Designator: USB2         External Connector Type: Access Bus (USB)         Port Type: USB Handle 0x000C, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J5A1         Internal Connector Type: None         External Reference Designator: USB3         External Connector Type: Access Bus (USB)         Port Type: USB Handle 0x000D, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J5A1         Internal Connector Type: None         External Reference Designator: USB4         External Connector Type: Access Bus (USB)         Port Type: USB Handle 0x000E, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J6A1         Internal Connector Type: None         External Reference Designator: Audio Mic In         External Connector Type: Mini Jack (headphones)         Port Type: Audio Port Handle 0x000F, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J6A1         Internal Connector Type: None         External Reference Designator: Audio Line In         External Connector Type: Mini Jack (headphones)         Port Type: Audio Port Handle 0x0010, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J6A1         Internal Connector Type: None         External Reference Designator: Audio Line Out         External Connector Type: Mini Jack (headphones)         Port Type: Audio Port Handle 0x0011, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J5A1         Internal Connector Type: None         External Reference Designator: LAN         External Connector Type: RJ-45         Port Type: Network Port Handle 0x0012, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J6J2 - PRI IDE         Internal Connector Type: On Board IDE         External Reference Designator: Not Specified         External Connector Type: None         Port Type: Other Handle 0x0013, DMI type 8, 9 bytes Port Connector Information         Internal Reference Designator: J6J1 - SEC IDE         Internal Connector Type: On Board IDE         External Reference Designator: Not Specified         External Connector Type: None         Port Type: Other Handle 0x0014, DMI type 10, 6 bytes On Board Device Information         Type: Video         Status: Enabled         Description:   To Be Filled By O.E.M. Handle 0x0015, DMI type 11, 5 bytes OEM Strings         String 1: To Be Filled By O.E.M.         String 2: To Be Filled By O.E.M.         String 3: To Be Filled By O.E.M.         String 4: To Be Filled By O.E.M. Handle 0x0016, DMI type 13, 22 bytes BIOS Language Information         Installable Languages: 1                 en|US|iso8859-1         Currently Installed Language: en|US|iso8859-1 Handle 0x0017, DMI type 15, 35 bytes System Event Log         Area Length: 4 bytes         Header Start Offset: 0x0000         Header Length: 2 bytes         Data Start Offset: 0x0002         Access Method: Indexed I/O, one 16-bit index port, one 8-bit data port         Access Address: Index 0x046A, Data 0x046C         Status: Invalid, Not Full         Change Token: 0x00000000         Header Format: No Header         Supported Log Type Descriptors: 6         Descriptor 1: End of log         Data Format 1: OEM-specific         Descriptor 2: End of log         Data Format 2: OEM-specific         Descriptor 3: End of log         Data Format 3: OEM-specific         Descriptor 4: End of log         Data Format 4: OEM-specific         Descriptor 5: End of log         Data Format 5: OEM-specific         Descriptor 6: End of log         Data Format 6: OEM-specific Handle 0x0018, DMI type 16, 15 bytes Physical Memory Array         Location: System Board Or Motherboard         Use: System Memory         Error Correction Type: None         Maximum Capacity: 4 GB         Error Information Handle: Not Provided         Number Of Devices: 1 Handle 0x0019, DMI type 19, 15 bytes Memory Array Mapped Address         Starting Address: 0x00000000000         Ending Address: 0x000400003FF         Range Size: 1048577 kB         Physical Array Handle: 0x0018         Partition Width: 0 Handle 0x001A, DMI type 17, 27 bytes Memory Device         Array Handle: 0x0018         Error Information Handle: Not Provided         Total Width: 64 bits         Data Width: 64 bits         Size: 1024 MB         Form Factor: DIMM         Set: None         Locator: DIMM0         Bank Locator: BANK0         Type: SDRAM         Type Detail: Synchronous         Speed: Unknown         Manufacturer: Manufacturer0         Serial Number: SerNum0         Asset Tag: AssetTagNum0         Part Number: PartNum0 Handle 0x001B, DMI type 20, 19 bytes Memory Device Mapped Address         Starting Address: 0x00000000000         Ending Address: 0x0003FFFFFFF         Range Size: 1 GB         Physical Device Handle: 0x001A         Memory Array Mapped Address Handle: 0x0019         Partition Row Position: 1         Interleaved Data Depth: 1 Handle 0x001C, DMI type 32, 20 bytes System Boot Information         Status: No errors detected Handle 0x001D, DMI type 127, 4 bytes End Of Table root@moon:~#

Het is duidelijk een 1000H met slechts een 9" schermpje. ennuh:
Heel raar, maar volgens de info kan hij een 4Gb module aan.

lspci

root@moon:~# lspci 00:00.0 Host bridge: Intel Corporation Mobile 945GME Express Memory Controller Hub (rev 03) 00:02.0 VGA compatible controller: Intel Corporation Mobile 945GME Express Integrated Graphics Controller (rev 03) 00:02.1 Display controller: Intel Corporation Mobile 945GM/GMS/GME, 943/940GML Express Integrated Graphics Controller (rev 03) 00:1b.0 Audio device: Intel Corporation 82801G (ICH7 Family) High Definition Audio Controller (rev 02) 00:1c.0 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 1 (rev 02) 00:1c.1 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 2 (rev 02) 00:1c.3 PCI bridge: Intel Corporation 82801G (ICH7 Family) PCI Express Port 4 (rev 02) 00:1d.0 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #1 (rev 02) 00:1d.1 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #2 (rev 02) 00:1d.2 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #3 (rev 02) 00:1d.3 USB Controller: Intel Corporation 82801G (ICH7 Family) USB UHCI Controller #4 (rev 02) 00:1d.7 USB Controller: Intel Corporation 82801G (ICH7 Family) USB2 EHCI Controller (rev 02) 00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev e2) 00:1f.0 ISA bridge: Intel Corporation 82801GBM (ICH7-M) LPC Interface Bridge (rev 02) 00:1f.2 IDE interface: Intel Corporation 82801GBM/GHM (ICH7 Family) SATA IDE Controller (rev 02) 01:00.0 Ethernet controller: Atheros Communications Inc. AR242x 802.11abg Wireless PCI Express Adapter (rev 01) 03:00.0 Ethernet controller: Attansic Technology Corp. L1 Gigabit Ethernet Adapter (rev b0) root@moon:~#

lsusb

root@moon:~# lsusb Bus 005 Device 003: ID 04f2:b071 Chicony Electronics Co., Ltd Bus 005 Device 002: ID 058f:6335 Alcor Micro Corp. Bus 005 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 002 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub Bus 001 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub root@moon:~#

Links

http://gathering.tweakers.net
http://www.geteasypeasy.com    De Ubuntu voor eee
http://www.eeebuntu.org            Een andere Ubuntu voor eee
http://crunchbanglinux.org           Lean en mean Ubuntu voor eee
