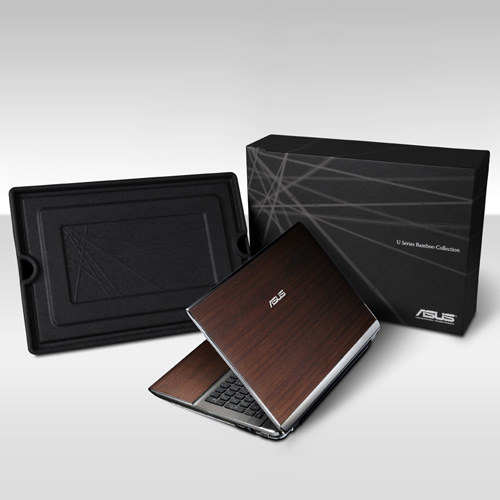

Asus U53jc notebook

Asus U53jc

Specificaties

Processor & Cache geheugenIntelŽ Core™ i5 Processor 450M/ : 2.4 GHz, with Turbo Boost up to 2.66 GHz
BesturingssysteemWindowsŽ 7 Home Premium,
ChipsetMobile IntelŽ HM55 Express Chipset
Geheugen DDR3 1066 MHz SDRAM, 2 x SODIMM
4GB SDRAM
Scherm 15.6" HD (1366x768) /16:9 LED backlight ColorShine
Video graphics & geheugenNVIDIANVIDIAŽ GeForceŽ G 310M, with 1GB DDR3 VRAM & Intel GMA HD (Support NVIDIA Optimus Technology)
Harde schijf 2.5" 9.5mm SATA
500GB,5400rpm;7200rpm
Optical DriveBlu-Ray DVD Combo
DVD Super Multi
Kaartlezer5 in 1 card reader: SD,MMC,MS-Pro,xD
Videocamera2.0 megapixel webcam
Fax/Modem/LAN/WLAN10/100/1000 Base T
Geďntegreerd
802.11 b/g/n or 802.11b/g
LED StatusindicatorCapital Lock
Power-on/Suspend
Batterij opladen/vol/laag
Toegang opslagapparaat
Wireless/Bluetooth on status indicator
Interface1 x Microfoon-in aansluiting
1 x Koptelefoon-out aansluiting (S/PDIF) 1 x VGA-poort/Mini D-sub 15-pins voor externe monitor
2 x USB 2.0-poorten1 x RJ45 LAN-aansluiting voor LAN-toevoeging

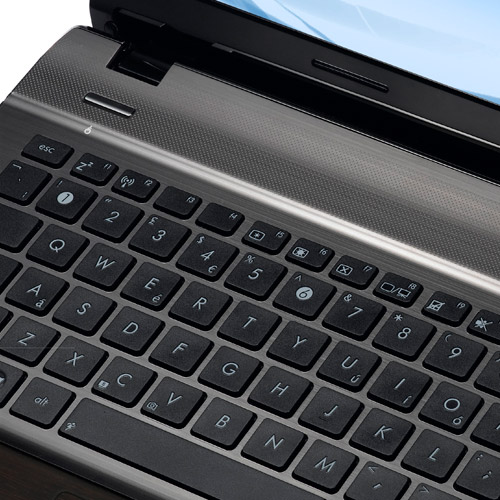

Hot Keys Functietoetsen:
Fn+F1
Fn+Ins, Fn+NumLK Scr LK on/off
Fn+F2 WLAN/Bluetooth schakelaar
Fn+F3 Toegang tot E-mail
Fn+F4 Toegang tot het Internet
Fn+F5 Helderheid lager
Fn+F6 Helderheid hoger
Fn+F7 LCD aan/uit
Fn+F8 LCD/CRT-scherm schakelaar
Fn+F9 TouchPad Lock
Fn+F10 Volume aan/stil
Fn+F11 Volume lager
Fn+F12 Volume hoger
Fn+Del Scroll Lock aan/uit
Fn+Spatie Power 4Gear
Fn+C Splendid
Fn+V Camera capture
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←：CD Ga naar Vorige Track (met Windows Media Player)
Fn+ →：CD Ga naar Volgende Track (met Windows Media Player)
AudioSRS
Ingebouwde speaker en microfoon
ToetsenbordNumberic Keyboard
Battery Pack & Speelduur8 cells: 4400/5600 mAh 63/84 Whrs
6 cells: 4400 mAh 47 Whrs
AC AdapterOutput: 19 V DC, 4.74 A, 90W
Input100~240 V AC, 50/60 Hz universeel
Afmetingen & gewicht38.6 x 25.7 x 3.16~3.309 cm (W x D x H)
2.76 kg, (with 6 cell battery)
Virus & Tool SoftwarePower2Go
Trend Micro Internet Security 2010 (60-day trial)
Office 2007 (60-day trial)Adobe Acrobat Reader 9.0
ASUS toepassingenSyncable Desktop 2-jarige beperkte wereldwijde hardware garantie
ASUS SmartLogon ASUS Net 4 switch
Asus Power4Gear Hybrid
Asus Live Update
Asus Multi-Frame
ASUS software ondersteuning
ASUS Life Frame 3
Online probleemoplossing via web-interface (BIOS, Driver update)
Virtual Camera
ASUS Splendid
ASUS Express Gate Fancy Start
AI Recovery
ControlDeck
Garantie & e-support2-year limited global hardware warranty
*different by country
1-jarige battery pack garantie
Online probleemoplossing via webinterface (BIOS, driver-update)
Besturingssysteem (Microsoft Windows Vista) installatie/de-installatie consult
Meegeleverde software installatie/de-installatie consult
ASUS-software ondersteuning

Specificaties processor

SPECIFICATIONS
Essentials
Status
Launched
Launch Date
Q2'10
Processor Number
i5-450M
# of Cores
2
# of Threads
4
Clock Speed
2.4 GHz
Max Turbo Frequency
2.66 GHz
IntelŽ Smart Cache
3 MB
Bus/Core Ratio
18
DMI
2.5 GT/s
Instruction Set
64-bit
Instruction Set Extensions
SSE4.1, SSE4.2
Embedded Options Available
No
Lithography
32 nm
Max TDP
35 W
Memory Specifications
Max Memory Size
(dependent on memory type)
8 GB
Memory Types
DDR3-800/1066
# of Memory Channels
2
Max Memory Bandwidth
17,1 GB/s
Physical Address Extensions
36-bit
ECC Memory Supported
No
Graphics Specifications
Integrated Graphics
Yes
IntelŽ HD Graphics
Yes
IntelŽ HD Graphics with Dynamic Frequency
Yes
Graphics Base Frequency
500 MHz
Graphics Max Dynamic Frequency
766 MHz
IntelŽ Flexible Display Interface (IntelŽ FDI)
Yes
IntelŽ Clear Video Technology
Yes
IntelŽ Clear Video HD Technology
Yes
Dual Display Capable
Yes
Macrovision* License Required
No
Expansion Options
PCI Express Revision
2.0
PCI Express Configurations
1x16
# of PCI Express Ports
1
Package Specifications
Max CPU Configuration
1
TJUNCTION
105°C
Package Size
rPGA 37.5mmx 37.5mm, BGA 34mmx28mm
Processing Die Size
81 mm2
# of Processing Die Transistors
382 million
Graphics and IMC Lithography
45 nm
Graphics and IMC Die Size
114 mm2
# of Graphics and IMC Die Transistors
177 million
Sockets Supported
PGA988
Halogen Free Options Available
Yes
Advanced Technologies
IntelŽ Turbo Boost Technology
Yes
IntelŽ Hyper-Threading Technology
Yes
IntelŽ Virtualization Technology (VT-x)
Yes
IntelŽ Virtualization Technology for Directed I/O (VT-d)
No
IntelŽ Trusted Execution Technology
No
AES New Instructions
No
IntelŽ 64
Yes
Idle States
Yes
Yes
Thermal Monitoring Technologies
Yes
IntelŽ Fast Memory Access
Yes
IntelŽ Flex Memory Access
Yes
Execute Disable Bit
Yes
IntelŽ Core™ i5-450M Processor (3M cache, 2.40 GHz) FC-PGA10, Tray
SocketStepStep TDPOrdering CodeSpec CodeHalogen FreeVT-x
PGA988K0 35 WattsCP80617004119AISLBTZ YesYes
Spec Information


Voorbeeld:

Code:
$

Ubuntu 10.10

Ubuntu 10.10 is gewoon vanaf usb stick te booten en te installeren. Tijdens booten even op escape drukken en de usb stick selecteren.
Let op, de nieuwe nvidia kaart drivers die hij zelf aangeeft dat ze beschikbaar zijn, NIET installeren. (zie verderop bij videokaart)

CPUinfo

Code:
gej@mercure:~$ cat /proc/cpuinfo
processor	: 0
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i5 CPU       M 450  @ 2.40GHz
stepping	: 5
cpu MHz		: 1199.000
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 0
initial apicid	: 0
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 popcnt lahf_lm ida arat dts tpr_shadow vnmi flexpriority ept vpid
bogomips	: 5292.16
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 1
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i5 CPU       M 450  @ 2.40GHz
stepping	: 5
cpu MHz		: 1199.000
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 2
cpu cores	: 2
apicid		: 4
initial apicid	: 4
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 popcnt lahf_lm ida arat dts tpr_shadow vnmi flexpriority ept vpid
bogomips	: 5291.98
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 2
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i5 CPU       M 450  @ 2.40GHz
stepping	: 5
cpu MHz		: 1199.000
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 0
cpu cores	: 2
apicid		: 1
initial apicid	: 1
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 popcnt lahf_lm ida arat dts tpr_shadow vnmi flexpriority ept vpid
bogomips	: 5292.00
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

processor	: 3
vendor_id	: GenuineIntel
cpu family	: 6
model		: 37
model name	: Intel(R) Core(TM) i5 CPU       M 450  @ 2.40GHz
stepping	: 5
cpu MHz		: 1199.000
cache size	: 3072 KB
physical id	: 0
siblings	: 4
core id		: 2
cpu cores	: 2
apicid		: 5
initial apicid	: 5
fpu		: yes
fpu_exception	: yes
cpuid level	: 11
wp		: yes
flags		: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good xtopology nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 popcnt lahf_lm ida arat dts tpr_shadow vnmi flexpriority ept vpid
bogomips	: 5291.97
clflush size	: 64
cache_alignment	: 64
address sizes	: 36 bits physical, 48 bits virtual
power management:

gej@mercure:~$

dmidecode

Code:
gej@mercure:~$ sudo dmidecode
# dmidecode 2.9
SMBIOS 2.6 present.
80 structures occupying 2781 bytes.
Table at 0x000EC060.

Handle 0x0000, DMI type 0, 24 bytes
BIOS Information
	Vendor: American Megatrends Inc.
	Version: U53Jc.209
	Release Date: 11/09/2010
	Address: 0xF0000
	Runtime Size: 64 kB
	ROM Size: 2048 kB
	Characteristics:
		PCI is supported
		BIOS is upgradeable
		BIOS shadowing is allowed
		Boot from CD is supported
		Selectable boot is supported
		EDD is supported
		5.25"/1.2 MB floppy services are supported (int 13h)
		3.5"/720 KB floppy services are supported (int 13h)
		3.5"/2.88 MB floppy services are supported (int 13h)
		Print screen service is supported (int 5h)
		8042 keyboard services are supported (int 9h)
		Serial services are supported (int 14h)
		Printer services are supported (int 17h)
		ACPI is supported
		USB legacy is supported
		Smart battery is supported
		BIOS boot specification is supported
		Targeted content distribution is supported
	BIOS Revision: 4.6

Handle 0x0002, DMI type 2, 15 bytes
Base Board Information
	Manufacturer: ASUSTeK Computer Inc.
	Product Name: U53Jc
	Version: 1.0
	Serial Number: BSN12345678901234567
	Asset Tag: ATN12345678901234567
	Features:
		Board is a hosting board
		Board is replaceable
	Location In Chassis: MIDDLE
	Chassis Handle: 0x0003
	Type: Motherboard
	Contained Object Handles: 0

Handle 0x0003, DMI type 3, 21 bytes
Chassis Information
	Manufacturer: ASUSTeK Computer Inc.
	Type: Notebook
	Lock: Present
	Version: 1.0
	Serial Number: CSN12345678901234567
	Asset Tag: ATN12345678901234567
	Boot-up State: Safe
	Power Supply State: Safe
	Thermal State: Safe
	Security Status: None
	OEM Information: 0x00000000
	Height: Unspecified
	Number Of Power Cords: 1
	Contained Elements: 0

Handle 0x0004, DMI type 4, 42 bytes
Processor Information
	Socket Designation: Socket 989
	Type: Central Processor
	Family: <OUT OF SPEC>
	Manufacturer: Intel
	ID: 55 06 02 00 FF FB EB BF
	Version: Intel(R) Core(TM) i5 CPU       M 450  @ 2.40GH
	Voltage: 0.0 V
	External Clock: 133 MHz
	Max Speed: 4000 MHz
	Current Speed: 2399 MHz
	Status: Populated, Enabled
	Upgrade: Other
	L1 Cache Handle: 0x0005
	L2 Cache Handle: 0x0006
	L3 Cache Handle: 0x0007
	Serial Number: To Be Filled By O.E.M.
	Asset Tag: To Be Filled By O.E.M.
	Part Number: To Be Filled By O.E.M.
	Core Count: 2
	Core Enabled: 1
	Thread Count: 2
	Characteristics:
		64-bit capable

Handle 0x0005, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L1-Cache
	Configuration: Enabled, Not Socketed, Level 1
	Operational Mode: Write Back
	Location: Internal
	Installed Size: 32 KB
	Maximum Size: 32 KB
	Supported SRAM Types:
		Other
	Installed SRAM Type: Other
	Speed: Unknown
	Error Correction Type: None
	System Type: Unified
	Associativity: 4-way Set-associative

Handle 0x0006, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L2-Cache
	Configuration: Enabled, Not Socketed, Level 2
	Operational Mode: Varies With Memory Address
	Location: Internal
	Installed Size: 256 KB
	Maximum Size: 256 KB
	Supported SRAM Types:
		Other
	Installed SRAM Type: Other
	Speed: Unknown
	Error Correction Type: None
	System Type: Unified
	Associativity: 8-way Set-associative

Handle 0x0007, DMI type 7, 19 bytes
Cache Information
	Socket Designation: L3-Cache
	Configuration: Enabled, Not Socketed, Level 3
	Operational Mode: Varies With Memory Address
	Location: Internal
	Installed Size: 3072 KB
	Maximum Size: 3072 KB
	Supported SRAM Types:
		Other
	Installed SRAM Type: Other
	Speed: Unknown
	Error Correction Type: None
	System Type: Unified
	Associativity: Other

Handle 0x0008, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: PS2Mouse
	External Connector Type: PS/2
	Port Type: Mouse Port

Handle 0x0009, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A1
	Internal Connector Type: None
	External Reference Designator: Keyboard
	External Connector Type: PS/2
	Port Type: Keyboard Port

Handle 0x000A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A2A
	Internal Connector Type: None
	External Reference Designator: Serial Port
	External Connector Type: DB-9 male
	Port Type: Serial Port 16550A Compatible

Handle 0x000B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1A2B
	Internal Connector Type: None
	External Reference Designator: Video
	External Connector Type: DB-15 female
	Port Type: Video Port

Handle 0x000C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A2
	Internal Connector Type: None
	External Reference Designator: HDMI
	External Connector Type: Other
	Port Type: Video Port

Handle 0x000D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A3
	Internal Connector Type: None
	External Reference Designator: USB1
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A3
	Internal Connector Type: None
	External Reference Designator: USB2
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x000F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A3
	Internal Connector Type: None
	External Reference Designator: USB3
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0010, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J3A3
	Internal Connector Type: None
	External Reference Designator: USB4
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0011, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4A1
	Internal Connector Type: None
	External Reference Designator: USB5
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0012, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4A1
	Internal Connector Type: None
	External Reference Designator: USB6
	External Connector Type: Access Bus (USB)
	Port Type: USB

Handle 0x0013, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4A1
	Internal Connector Type: None
	External Reference Designator: LAN
	External Connector Type: RJ-45
	Port Type: Network Port

Handle 0x0014, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5A1
	Internal Connector Type: None
	External Reference Designator: Motherboard DP
	External Connector Type: Other
	Port Type: Other

Handle 0x0015, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8J1
	Internal Connector Type: None
	External Reference Designator: SATA Port 0 Direct Connect
	External Connector Type: SAS/SATA Plug Receptacle
	Port Type: SATA

Handle 0x0016, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J7J1
	Internal Connector Type: None
	External Reference Designator: eSATA Port 4
	External Connector Type: SAS/SATA Plug Receptacle
	Port Type: SATA

Handle 0x0017, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J6J1
	Internal Connector Type: None
	External Reference Designator: eSATA Port 3
	External Connector Type: SAS/SATA Plug Receptacle
	Port Type: SATA

Handle 0x0018, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1F2
	Internal Connector Type: None
	External Reference Designator: AC IN
	External Connector Type: Other
	Port Type: Other

Handle 0x0019, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5B1 - PCH JTAG
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9A1 - TPM/PORT 80
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E4 - HDA 2X8 Header
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E7 - HDA 8Pin Header
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8F1 - HDA HDMI
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E3 - Scan Matrix Keyboard
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x001F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8E1 - SPI Program
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0020, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9E5 - LPC Hot Docking
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0021, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J9G2 - LPC SIDE BAND
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0022, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8F2 - LPC Slot
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0023, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J8H3 - PCH XDP
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0024, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J7G1 - SATA Port 2
	Internal Connector Type: SAS/SATA Plug Receptacle
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: SATA

Handle 0x0025, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J7G2 - SATA Port 1
	Internal Connector Type: SAS/SATA Plug Receptacle
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: SATA

Handle 0x0026, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J6H1 - SATA Power
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0027, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J5J1 - FP Header
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0028, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4H1 - ATX Power
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0029, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1J3 - AVMC
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002A, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1H1 - BATT B
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002B, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1H2 - BATT A
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002C, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J2G1 - CPU Fan
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002D, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J1D3 - XDP
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002E, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4V1 - Memory Slot 1
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x002F, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4V2 - Memory Slot 2
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0030, DMI type 8, 9 bytes
Port Connector Information
	Internal Reference Designator: J4C1 - FAN PWR
	Internal Connector Type: Other
	External Reference Designator: Not Specified
	External Connector Type: None
	Port Type: Other

Handle 0x0031, DMI type 9, 17 bytes
System Slot Information
	Designation: J5C1
	Type: x16 <OUT OF SPEC>
	Current Usage: In Use
	Length: Long
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0032, DMI type 9, 17 bytes
System Slot Information
	Designation: J6C2
	Type: x1 PCI Express
	Current Usage: Available
	Length: Short
	ID: 1
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0033, DMI type 9, 17 bytes
System Slot Information
	Designation: J6D2
	Type: x1 PCI Express
	Current Usage: In Use
	Length: Short
	ID: 2
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0034, DMI type 9, 17 bytes
System Slot Information
	Designation: J7C1
	Type: x1 PCI Express
	Current Usage: Available
	Length: Short
	ID: 3
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0035, DMI type 9, 17 bytes
System Slot Information
	Designation: J7D2
	Type: x1 PCI Express
	Current Usage: In Use
	Length: Short
	ID: 4
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0036, DMI type 9, 17 bytes
System Slot Information
	Designation: J6C1
	Type: x1 PCI Express
	Current Usage: Available
	Length: Short
	ID: 5
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0037, DMI type 9, 17 bytes
System Slot Information
	Designation: J8C1
	Type: x1 PCI Express
	Current Usage: In Use
	Length: Short
	ID: 6
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0038, DMI type 9, 17 bytes
System Slot Information
	Designation: J9C1
	Type: x1 PCI Express
	Current Usage: Available
	Length: Short
	ID: 7
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x0039, DMI type 9, 17 bytes
System Slot Information
	Designation: JAC1
	Type: x1 PCI Express
	Current Usage: Available
	Length: Short
	ID: 8
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x003A, DMI type 9, 17 bytes
System Slot Information
	Designation: JBC1
	Type: 32-bit PCI
	Current Usage: Available
	Length: Long
	ID: 9
	Characteristics:
		3.3 V is provided
		Opening is shared
		PME signal is supported

Handle 0x003B, DMI type 10, 6 bytes
On Board Device Information
	Type: Video
	Status: Enabled
	Description:    To Be Filled By O.E.M.

Handle 0x003C, DMI type 10, 6 bytes
On Board Device Information
	Type: Ethernet
	Status: Disabled
	Description: To Be Filled By O.E.M.

Handle 0x003D, DMI type 10, 6 bytes
On Board Device Information
	Type: Sound
	Status: Enabled
	Description:    To Be Filled By O.E.M.

Handle 0x003E, DMI type 11, 5 bytes
OEM Strings
	String 1:

Handle 0x003F, DMI type 12, 5 bytes
System Configuration Options
	Option 1: DSN:

Handle 0x0040, DMI type 13, 22 bytes
BIOS Language Information
	Installable Languages: 1
		en|US|iso8859-1
	Currently Installed Language: en|US|iso8859-1

Handle 0x0047, DMI type 21, 7 bytes
Built-in Pointing Device
	Type: Touch Pad
	Interface: PS/2
	Buttons: 2

Handle 0x0048, DMI type 32, 20 bytes
System Boot Information
	Status: No errors detected

Handle 0x0001, DMI type 1, 27 bytes
System Information
	Manufacturer: ASUSTeK Computer Inc.
	Product Name: U53Jc
	Version: 1.0
	Serial Number: ABN0AS35563047
	UUID: 00E9AC50-D1F2-DF81-3030-BCAEC5131A60
	Wake-up Type: Power Switch
	SKU Number:
	Family:

Handle 0x0041, DMI type 16, 15 bytes
Physical Memory Array
	Location: System Board Or Motherboard
	Use: System Memory
	Error Correction Type: None
	Maximum Capacity: 16 GB
	Error Information Handle: Not Provided
	Number Of Devices: 4

Handle 0x0042, DMI type 17, 28 bytes
Memory Device
	Array Handle: 0x0041
	Error Information Handle: Not Provided
	Total Width: 64 bits
	Data Width: 64 bits
	Size: 2048 MB
	Form Factor: SODIMM
	Set: None
	Locator: DIMM0
	Bank Locator: BANK 0
	Type: <OUT OF SPEC>
	Type Detail: Synchronous
	Speed: 1067 MHz (0.9 ns)
	Manufacturer: 80AD
	Serial Number: 34A4345A
	Asset Tag: Unknown
	Part Number: HMT125S6TFR8C-H9

Handle 0x0043, DMI type 20, 19 bytes
Memory Device Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x0007FFFFFFF
	Range Size: 2 GB
	Physical Device Handle: 0x0042
	Memory Array Mapped Address Handle: 0x004B
	Partition Row Position: Unknown
	Interleave Position: 1
	Interleaved Data Depth: 1

Handle 0x0044, DMI type 17, 28 bytes
Memory Device
	Array Handle: 0x0041
	Error Information Handle: Not Provided
	Total Width: Unknown
	Data Width: Unknown
	Size: No Module Installed
	Form Factor: DIMM
	Set: None
	Locator: DIMM1
	Bank Locator: BANK 1
	Type: Unknown
	Type Detail: None
	Speed: Unknown
	Manufacturer: [Empty]
	Serial Number: [Empty]
	Asset Tag: Unknown
	Part Number: [Empty]

Handle 0x0045, DMI type 17, 28 bytes
Memory Device
	Array Handle: 0x0041
	Error Information Handle: Not Provided
	Total Width: 64 bits
	Data Width: 64 bits
	Size: 2048 MB
	Form Factor: SODIMM
	Set: None
	Locator: DIMM2
	Bank Locator: BANK 2
	Type: <OUT OF SPEC>
	Type Detail: Synchronous
	Speed: 1067 MHz (0.9 ns)
	Manufacturer: 80AD
	Serial Number: 34743473
	Asset Tag: Unknown
	Part Number: HMT125S6TFR8C-H9

Handle 0x0046, DMI type 20, 19 bytes
Memory Device Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x0007FFFFFFF
	Range Size: 2 GB
	Physical Device Handle: 0x0045
	Memory Array Mapped Address Handle: 0x004B
	Partition Row Position: Unknown
	Interleave Position: 2
	Interleaved Data Depth: 1

Handle 0x004A, DMI type 17, 28 bytes
Memory Device
	Array Handle: 0x0041
	Error Information Handle: Not Provided
	Total Width: Unknown
	Data Width: Unknown
	Size: No Module Installed
	Form Factor: DIMM
	Set: None
	Locator: DIMM3
	Bank Locator: BANK 3
	Type: Unknown
	Type Detail: None
	Speed: Unknown
	Manufacturer: [Empty]
	Serial Number: [Empty]
	Asset Tag: Unknown
	Part Number: [Empty]

Handle 0x004B, DMI type 19, 15 bytes
Memory Array Mapped Address
	Starting Address: 0x00000000000
	Ending Address: 0x000FFFFFFFF
	Range Size: 4 GB
	Physical Array Handle: 0x0041
	Partition Width: 0

Handle 0x0049, DMI type 129, 8 bytes
OEM-specific Type
	Header and Data:
		81 08 49 00 01 01 02 01
	Strings:
		Intel_ASF
		Intel_ASF_001

Handle 0x004A, DMI type 130, 20 bytes
OEM-specific Type
	Header and Data:
		82 14 4A 00 24 41 4D 54 00 00 00 00 00 A5 2F 02
		00 00 00 00

Handle 0x004B, DMI type 131, 64 bytes
OEM-specific Type
	Header and Data:
		83 40 4B 00 31 00 00 00 00 00 00 00 00 00 00 00
		F8 00 09 3B 00 00 00 00 01 20 00 00 00 00 06 00
		AB 04 03 00 00 00 00 00 C8 00 FF FF 00 00 00 00
		00 00 00 00 32 00 00 00 76 50 72 6F 00 00 00 00

Handle 0x004C, DMI type 136, 6 bytes
OEM-specific Type
	Header and Data:
		88 06 4C 00 00 00

Handle 0x004D, DMI type 127, 4 bytes
End Of Table

gej@mercure:

lspci

Code:
gej@mercure:~$ lspci
00:00.0 Host bridge: Intel Corporation Core Processor DRAM Controller (rev 18)
00:01.0 PCI bridge: Intel Corporation Core Processor PCI Express x16 Root Port (rev 18)
00:02.0 VGA compatible controller: Intel Corporation Core Processor Integrated Graphics Controller (rev 18)
00:16.0 Communication controller: Intel Corporation 5 Series/3400 Series Chipset HECI Controller (rev 06)
00:1a.0 USB Controller: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller (rev 06)
00:1b.0 Audio device: Intel Corporation 5 Series/3400 Series Chipset High Definition Audio (rev 06)
00:1c.0 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 1 (rev 06)
00:1c.1 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 2 (rev 06)
00:1c.3 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 4 (rev 06)
00:1c.5 PCI bridge: Intel Corporation 5 Series/3400 Series Chipset PCI Express Root Port 6 (rev 06)
00:1d.0 USB Controller: Intel Corporation 5 Series/3400 Series Chipset USB2 Enhanced Host Controller (rev 06)
00:1e.0 PCI bridge: Intel Corporation 82801 Mobile PCI Bridge (rev a6)
00:1f.0 ISA bridge: Intel Corporation Mobile 5 Series Chipset LPC Interface Controller (rev 06)
00:1f.2 SATA controller: Intel Corporation 5 Series/3400 Series Chipset 4 port SATA AHCI Controller (rev 06)
00:1f.6 Signal processing controller: Intel Corporation 5 Series/3400 Series Chipset Thermal Subsystem (rev 06)
01:00.0 VGA compatible controller: nVidia Corporation GT218 [GeForce 310M] (rev a2)
03:00.0 Network controller: Atheros Communications Inc. AR9285 Wireless Network Adapter (PCI-Express) (rev 01)
04:00.0 USB Controller: NEC Corporation uPD720200 USB 3.0 Host Controller (rev 03)
05:00.0 Ethernet controller: Atheros Communications AR8131 Gigabit Ethernet (rev c0)
ff:00.0 Host bridge: Intel Corporation Core Processor QuickPath Architecture Generic Non-core Registers (rev 05)
ff:00.1 Host bridge: Intel Corporation Core Processor QuickPath Architecture System Address Decoder (rev 05)
ff:02.0 Host bridge: Intel Corporation Core Processor QPI Link 0 (rev 05)
ff:02.1 Host bridge: Intel Corporation Core Processor QPI Physical 0 (rev 05)
ff:02.2 Host bridge: Intel Corporation Core Processor Reserved (rev 05)
ff:02.3 Host bridge: Intel Corporation Core Processor Reserved (rev 05)
gej@mercure:~$

lsusb

Code:
gej@mercure:~$ lsusb
Bus 002 Device 002: ID 8087:0020 Intel Corp. Integrated Rate Matching Hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 001 Device 004: ID 0b05:1788 ASUSTek Computer, Inc. (bluetooth)
Bus 001 Device 003: ID 13d3:5122 IMC Networks (webcam)
Bus 001 Device 002: ID 8087:0020 Intel Corp. Integrated Rate Matching Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
gej@mercure:~$

battery

Code:
$ gej@mercure:~$ cat /proc/acpi/battery/BAT0/info
present:                 yes
design capacity:         48400 mWh
last full capacity:      47300 mWh
battery technology:      rechargeable
design voltage:          10800 mV
design capacity warning: 4840 mWh
design capacity low:     484 mWh
cycle count:		  0
capacity granularity 1:  484 mWh
capacity granularity 2:  484 mWh
model number:            U53-44
serial number:
battery type:            LIon
OEM info:                ASUSTek
gej@mercure:~$


Video Card

Onder linux krijg ik alleen de Intel kaart aan het werk. De Nvidia driver wil wel downloaden, maar na installatie crashed de xorg.
Voor de duidelijkheid. Dit is zo'n modern notebook met twee video kaarten. Een Intel voor het rechttoe rechtaan werk, en een nvidia GeForce G 310M voor het echte werk.
Na het wissen van de /etc/X11/xorg.conf detecteert Ubuntu weer de intel kaart. Alleen die is redelijk bagger. Filmpje kijken gaat nog wel, maar alle leuke effecten zijn weg.
De videokaart is dus een Nvidia 310M met twee video kaarten. Een intel en een Nvidia. Helaas heeft Nvidia doorgegeven deze kaart niet te supporten onder linux.
Enige wat we nu nog kunnen doen is de videokaart uitschakelen om stroom te besparen totdat iemand een driver heeft gemaakt.
Er is al software om te schakelen tussen de radeon en de intel kaart. Dus gewoon een kwestie van wachten.

Uitschakelen Nvidia 310M

Ter referentie, stroomverbruik met kaart aan:

Code:
gej@mercure:~/Downloads$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            21373 mW
gej@mercure:~/Downloads$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            19734 mW
gej@mercure:~/Downloads$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            18029 mW
gej@mercure:~/Downloads$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            19294 mW
gej@mercure:~/Downloads$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            18480 mW

Software downloaden om de kaart uit te schakelen en dit doen.
Download deze bij https://github.com/mkottman/acpi_call of bij https://download.github.com/mkottman-acpi_call-9da5be8.tar.gz

Even compileren:
root@mercure:/home/gej/Downloads/acpi_call/mkottman-acpi_call-9da5be8# make
make -C /lib/modules/2.6.35-24-generic/build M=/home/gej/Downloads/acpi_call/mkottman-acpi_call-9da5be8 modules
make[1]: Entering directory `/usr/src/linux-headers-2.6.35-24-generic'
  Building modules, stage 2.
  MODPOST 1 modules
make[1]: Leaving directory `/usr/src/linux-headers-2.6.35-24-generic'

Testen:
Code:
gej@mercure:~/Downloads/acpi_call/mkottman-acpi_call-9da5be8$ ./test_off.sh
The acpi_call module is not loaded
gej@mercure:~/Downloads/acpi_call/mkottman-acpi_call-9da5be8$ sudo insmod acpi_call.ko
[sudo] password for gej:
gej@mercure:~/Downloads/acpi_call/mkottman-acpi_call-9da5be8$ ./test_off.sh
Trying \_SB.PCI0.P0P1.VGA._OFF: failed
Trying \_SB.PCI0.P0P2.VGA._OFF: failed
Trying \_SB_.PCI0.OVGA.ATPX: failed
Trying \_SB_.PCI0.OVGA.XTPX: failed
Trying \_SB.PCI0.P0P3.PEGP._OFF: failed
Trying \_SB.PCI0.P0P2.PEGP._OFF: failed
Trying \_SB.PCI0.P0P1.PEGP._OFF: failed
Trying \_SB.PCI0.MXR0.MXM0._OFF: failed
Trying \_SB.PCI0.PEG1.GFX0._OFF: works!
Stroomverbruik controleren:

Code:
gej@mercure:~/Downloads/$ grep -i rate /proc/acpi/battery/BAT0/state
present rate:            14377 mW
gej@mercure:~/Downloads/$

Even scriptje maken:

        insmod acpi_call.ko

        echo "\_SB.PCI0.PEG1.GFX0._OFF" > /proc/acpi/call
        result=$(cat /proc/acpi/call)
        case "$result" in
        Error*)
            echo "failed"
        ;;
        *)
            echo "works!"
            break
        ;;
        esac

Nu nog een mooie plek binnen Ubuntu om het elke keer met booten aan te roepen.
even toevoegen aan rc.local:

HDMI

Als je de HDMI kabel erin steekt, doet hij het niet 100%. Maar na een reboot werkt hij perfekt. Zelfs op de slechte intel driver.

Fix Suspend/sleep

De suspend/sleep functie doet het niet. Deze kun je weer aktiveren met het volgende script (eerlijk gejat van: https://launchpad.net/~asus-ul30)
We have to unbind the USB buses manually before suspending. Create /etc/pm/sleep.d/20_custom-asus-u53jc:

Code:
#!/bin/sh

EHCI_BUSES="0000:00:1a.0 0000:00:1d.0"
XHCI_BUSES="0000:04:00.0"

case "${1}" in
    hibernate|suspend)
        # Switch USB buses off
        for bus in $EHCI_BUSES; do
            echo -n $bus | tee /sys/bus/pci/drivers/ehci_hcd/unbind
        done
        for bus in $XHCI_BUSES; do
            echo -n $bus | tee /sys/bus/pci/drivers/xhci_hcd/unbind
        done
        # Switch nvidia card on before going to sleep, avoids the "constant on"
        # bug that occurs after 2 suspend/resume cycles (thanks kos888)
        #echo '\_SB.PCI0.PEG1.GFX0._ON' > /proc/acpi/call
        ;;
    resume|thaw)
        # Switch USB buses back on and nvidia card off
        for bus in $EHCI_BUSES; do
            echo -n $bus | tee /sys/bus/pci/drivers/ehci_hcd/bind
        done
        for bus in $XHCI_BUSES; do
            echo -n $bus | tee /sys/bus/pci/drivers/xhci_hcd/bind
        done
        #echo '\_SB.PCI0.PEG1.GFX0._OFF' > /proc/acpi/call
        ;;
esac
And make it executable:

Code:
$ sudo chmod a+x /etc/pm/sleep.d/20_custom-asus-u53jc

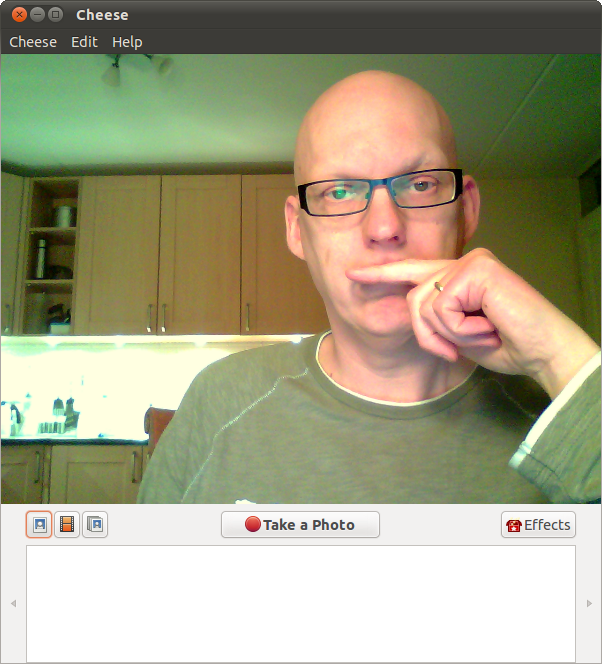

Webcam (update 12-02 hij werkt!)

De webcam heeft een interessant effect, het beeld is omgekeerd.
Gelukkig ben ik niet de enige op internet met zo'n notebook en een omgekeerde camera, dus heeft Hans de Goede hiervoor een library gemaakt.
 geinverteerde webcam

Het is een Sonix USB camera:
Bus 001 Device 004: ID 0b05:1788 ASUSTek Computer, Inc.

lsusb -vv
Code:
$ lsusb
...
Bus 001 Device 003: ID 13d3:5122 IMC Networks
...

gej@mercure:~$ sudo lsusb -d 13d3:5122 -vv

Bus 001 Device 003: ID 13d3:5122 IMC Networks
Device Descriptor:
  bLength                18
  bDescriptorType         1
  bcdUSB               2.00
  bDeviceClass          239 Miscellaneous Device
  bDeviceSubClass         2 ?
  bDeviceProtocol         1 Interface Association
  bMaxPacketSize0        64
  idVendor           0x13d3 IMC Networks
  idProduct          0x5122
  bcdDevice            2.02
  iManufacturer           2 USB2.0 UVC 2M WebCam
  iProduct                1 USB2.0 UVC 2M WebCam
  iSerial                 3 USB2.0 UVC 2M WebCam
  bNumConfigurations      1
  Configuration Descriptor:
    bLength                 9
    bDescriptorType         2
    wTotalLength          603
    bNumInterfaces          2
    bConfigurationValue     1
    iConfiguration          0
    bmAttributes         0x80
      (Bus Powered)
    MaxPower              500mA
    Interface Association:
      bLength                 8
      bDescriptorType        11
      bFirstInterface         0
      bInterfaceCount         2
      bFunctionClass         14 Video
      bFunctionSubClass       3 Video Interface Collection
      bFunctionProtocol       0
      iFunction               5 USB2.0 UVC 2M WebCam
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        0
      bAlternateSetting       0
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      1 Video Control
      bInterfaceProtocol      0
      iInterface              5 USB2.0 UVC 2M WebCam
      VideoControl Interface Descriptor:
        bLength                13
        bDescriptorType        36
        bDescriptorSubtype      1 (HEADER)
        bcdUVC               1.00
        wTotalLength           77
        dwClockFrequency       15.000000MHz
        bInCollection           1
        baInterfaceNr( 0)       1
      VideoControl Interface Descriptor:
        bLength                 9
        bDescriptorType        36
        bDescriptorSubtype      3 (OUTPUT_TERMINAL)
        bTerminalID             2
        wTerminalType      0x0101 USB Streaming
        bAssocTerminal          0
        bSourceID               4
        iTerminal               0
      VideoControl Interface Descriptor:
        bLength                26
        bDescriptorType        36
        bDescriptorSubtype      6 (EXTENSION_UNIT)
        bUnitID                 4
        guidExtensionCode         {7033f028-1163-2e4a-ba2c-6890eb334016}
        bNumControl             8
        bNrPins                 1
        baSourceID( 0)          3
        bControlSize            1
        bmControls( 0)       0x0f
        iExtension              0
      VideoControl Interface Descriptor:
        bLength                18
        bDescriptorType        36
        bDescriptorSubtype      2 (INPUT_TERMINAL)
        bTerminalID             1
        wTerminalType      0x0201 Camera Sensor
        bAssocTerminal          0
        iTerminal               0
        wObjectiveFocalLengthMin      0
        wObjectiveFocalLengthMax      0
        wOcularFocalLength            0
        bControlSize                  3
        bmControls           0x00000000
      VideoControl Interface Descriptor:
        bLength                11
        bDescriptorType        36
        bDescriptorSubtype      5 (PROCESSING_UNIT)
      Warning: Descriptor too short
        bUnitID                 3
        bSourceID               1
        wMaxMultiplier          0
        bControlSize            2
        bmControls     0x0000177f
          Brightness
          Contrast
          Hue
          Saturation
          Sharpness
          Gamma
          White Balance Temperature
          Backlight Compensation
          Gain
          Power Line Frequency
          White Balance Temperature, Auto
        iProcessing             0
        bmVideoStandards     0x 0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x83  EP 3 IN
        bmAttributes            3
          Transfer Type            Interrupt
          Synch Type               None
          Usage Type               Data
        wMaxPacketSize     0x0010  1x 16 bytes
        bInterval               6
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       0
      bNumEndpoints           0
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              5 USB2.0 UVC 2M WebCam
      VideoStreaming Interface Descriptor:
        bLength                            14
        bDescriptorType                    36
        bDescriptorSubtype                  1 (INPUT_HEADER)
        bNumFormats                         1
        wTotalLength                      383
        bEndPointAddress                  129
        bmInfo                              0
        bTerminalLink                       2
        bStillCaptureMethod                 0
        bTriggerSupport                     0
        bTriggerUsage                       0
        bControlSize                        1
        bmaControls( 0)                    27
      VideoStreaming Interface Descriptor:
        bLength                            27
        bDescriptorType                    36
        bDescriptorSubtype                  4 (FORMAT_UNCOMPRESSED)
        bFormatIndex                        1
        bNumFrameDescriptors                8
        guidFormat                            {59555932-0000-1000-8000-00aa00389b71}
        bBitsPerPixel                      16
        bDefaultFrameIndex                  1
        bAspectRatioX                       0
        bAspectRatioY                       0
        bmInterlaceFlags                 0x00
          Interlaced stream or variable: No
          Fields per frame: 1 fields
          Field 1 first: No
          Field pattern: Field 1 only
          bCopyProtect                      0
      VideoStreaming Interface Descriptor:
        bLength                            46
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         1
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            640
        wHeight                           480
        dwMinBitRate                 24576000
        dwMaxBitRate                147456000
        dwMaxVideoFrameBufferSize      614400
        dwDefaultFrameInterval         333333
        bFrameIntervalType                  5
        dwFrameInterval( 0)            333333
        dwFrameInterval( 1)            500000
        dwFrameInterval( 2)            666666
        dwFrameInterval( 3)           1000000
        dwFrameInterval( 4)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            46
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         2
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            352
        wHeight                           288
        dwMinBitRate                  8110080
        dwMaxBitRate                 48660480
        dwMaxVideoFrameBufferSize      202752
        dwDefaultFrameInterval         333333
        bFrameIntervalType                  5
        dwFrameInterval( 0)            333333
        dwFrameInterval( 1)            500000
        dwFrameInterval( 2)            666666
        dwFrameInterval( 3)           1000000
        dwFrameInterval( 4)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            46
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         3
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            320
        wHeight                           240
        dwMinBitRate                  6144000
        dwMaxBitRate                 36864000
        dwMaxVideoFrameBufferSize      153600
        dwDefaultFrameInterval         333333
        bFrameIntervalType                  5
        dwFrameInterval( 0)            333333
        dwFrameInterval( 1)            500000
        dwFrameInterval( 2)            666666
        dwFrameInterval( 3)           1000000
        dwFrameInterval( 4)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            46
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         4
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            176
        wHeight                           144
        dwMinBitRate                  2027520
        dwMaxBitRate                 12165120
        dwMaxVideoFrameBufferSize       50688
        dwDefaultFrameInterval         333333
        bFrameIntervalType                  5
        dwFrameInterval( 0)            333333
        dwFrameInterval( 1)            500000
        dwFrameInterval( 2)            666666
        dwFrameInterval( 3)           1000000
        dwFrameInterval( 4)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            46
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         5
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            160
        wHeight                           120
        dwMinBitRate                  1536000
        dwMaxBitRate                  9216000
        dwMaxVideoFrameBufferSize       38400
        dwDefaultFrameInterval         333333
        bFrameIntervalType                  5
        dwFrameInterval( 0)            333333
        dwFrameInterval( 1)            500000
        dwFrameInterval( 2)            666666
        dwFrameInterval( 3)           1000000
        dwFrameInterval( 4)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            42
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         6
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                            800
        wHeight                           600
        dwMinBitRate                 38400000
        dwMaxBitRate                153600000
        dwMaxVideoFrameBufferSize      960000
        dwDefaultFrameInterval         500000
        bFrameIntervalType                  4
        dwFrameInterval( 0)            500000
        dwFrameInterval( 1)            666666
        dwFrameInterval( 2)           1000000
        dwFrameInterval( 3)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            34
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         7
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                           1280
        wHeight                           960
        dwMinBitRate                 98304000
        dwMaxBitRate                176947200
        dwMaxVideoFrameBufferSize     2457600
        dwDefaultFrameInterval        1111111
        bFrameIntervalType                  2
        dwFrameInterval( 0)           1111111
        dwFrameInterval( 1)           2000000
      VideoStreaming Interface Descriptor:
        bLength                            30
        bDescriptorType                    36
        bDescriptorSubtype                  5 (FRAME_UNCOMPRESSED)
        bFrameIndex                         8
        bmCapabilities                   0x00
          Still image unsupported
        wWidth                           1600
        wHeight                          1200
        dwMinBitRate                153600000
        dwMaxBitRate                153600000
        dwMaxVideoFrameBufferSize     3840000
        dwDefaultFrameInterval        2000000
        bFrameIntervalType                  1
        dwFrameInterval( 0)           2000000
      VideoStreaming Interface Descriptor:
        bLength                             6
        bDescriptorType                    36
        bDescriptorSubtype                 13 (COLORFORMAT)
        bColorPrimaries                     1 (BT.709,sRGB)
        bTransferCharacteristics            1 (BT.709)
        bMatrixCoefficients                 4 (SMPTE 170M (BT.601))
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       1
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x0080  1x 128 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       2
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x0100  1x 256 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       3
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x0320  1x 800 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       4
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x0b20  2x 800 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       5
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x1320  3x 800 bytes
        bInterval               1
    Interface Descriptor:
      bLength                 9
      bDescriptorType         4
      bInterfaceNumber        1
      bAlternateSetting       6
      bNumEndpoints           1
      bInterfaceClass        14 Video
      bInterfaceSubClass      2 Video Streaming
      bInterfaceProtocol      0
      iInterface              0
      Endpoint Descriptor:
        bLength                 7
        bDescriptorType         5
        bEndpointAddress     0x81  EP 1 IN
        bmAttributes            5
          Transfer Type            Isochronous
          Synch Type               Asynchronous
          Usage Type               Data
        wMaxPacketSize     0x1400  3x 1024 bytes
        bInterval               1
Device Qualifier (for other device speed):
  bLength                10
  bDescriptorType         6
  bcdUSB               2.00
  bDeviceClass          239 Miscellaneous Device
  bDeviceSubClass         2 ?
  bDeviceProtocol         1 Interface Association
  bMaxPacketSize0        64
  bNumConfigurations      1
Device Status:     0x0002
  (Bus Powered)
  Remote Wakeup Enabled
gej@mercure:~$



Een zekere Hans (v4l en libv4l ontwikkelaar) schrijft:
Hans de Goede wrote on 2010-11-05: #30

Hi all,

Short self intro: I'm a v4l kernel subsystem developer and the author and maintainer of libv4l. So when it comes to upside down mounted webcams in laptops there are 3 important points to keep in mind:

1) Video processing in the kernel is wrong, and the kernel patch which some here have referred to is doubly wrong because it will flip the image of all uvc devices not just those mounted upside down in some webcams. Please stop mucking around with kernel patches, they are not the solution to this problem!

2) The proper solution for this is flipping the image in userspace which is being handled by libv4l. libv4l has a large list of known to have a mounted upside down webcam laptop models which is constantly updated. There is a ppa available which is tracking upstream libv4l (now part of v4l-utils) pretty closely, follow the instructions here to install libv4l from this ppa:
http://radu.cotescu.com/2009/11/05/flipped-images-ubuntu-webcam/

3) Unfortunately not all programs are using libv4l, some try to talk to the /dev/video node directly, please test with "cheese" and if the image is not upside down there, the problem you are seeing is not in libv4l, but an app which does not use libv4l, see below for a workaround for this.

If the image is still upside down in cheese *after* installing the latest libv4l / v4l-utils from the above link, then your laptop model is not in the list of libv4l, please do (as root):
lsusb > lsusb.log
dmidecode > dmi.log

And send me <email address hidden>, a mail with the 2 generated files attached. Do *NOT* copy and paste them I need them 100% unmodified.

I'll then add your laptop to libv4l's upside down table and get back to you with testing instructions.

4) Programs which are not using libv4l, notorious examples of which are skype and the google chat firefox plugin, can be made to use libv4l by pre-loading a libc wrapper, launch the program in question from a cmdline like this to use this wrapper:
LD_PRELOAD=/usr/lib/libv4l/v4l1compat.so application_name

For example for skype:
LD_PRELOAD=/usr/lib/libv4l/v4l1compat.so skype

Note that when running 32 bit apps such as skype (even the so called 64 bit download of skype is 32 bits!!) and the google chat firefox plugin on a 64 bit install, you must use the following line to get the 32 bit version if the wrapper:
LD_PRELOAD=/usr/lib32/libv4l/v4l1compat.so skype

Note that for the google chat plugin, firefox must be started with this wrapper, first close *all* firefox windows and then do:
LD_PRELOAD=/usr/lib/libv4l/v4l1compat.so firefox
Or on 64 bit installs:
LD_PRELOAD=/usr/lib32/libv4l/v4l1compat.so firefox

Regards,

Hans

See full activity log

Een weekje terug hebben we Hans de juiste files toegestuurd, en de 9e kreeg ik een mailtje terug of ik hem wilde testen.
Versie 0.83 kwam 9 feb uit, en twee dagen later zat hij in de experimentele ubuntu dingen. Installeer deze als volgt:


Code:


gej@mercure:~$ echo -e "\n# libv4l PPA\ndeb http://ppa.launchpad.net/libv4l/ppa/ubuntu `lsb_release -c | awk '{print $2}'` main" | sudo tee -a /etc/apt/sources.list
[sudo] password for gej:
deb http://ppa.launchpad.net/libv4l/ppa/ubuntu maverick main
gej@mercure:~$ sudo apt-key adv --recv-keys --keyserver keyserver.ubuntu.com C3FFB4AA
Executing: gpg --ignore-time-conflict --no-options --no-default-keyring
--secret-keyring /etc/apt/secring.gpg --trustdb-name
/etc/apt/trustdb.gpg --keyring /etc/apt/trusted.gpg --primary-keyring
/etc/apt/trusted.gpg --recv-keys --keyserver keyserver.ubuntu.com
C3FFB4AA
gpg: requesting key C3FFB4AA from hkp server keyserver.ubuntu.com
gpg: key C3FFB4AA: public key "Launchpad libv4l" imported
gpg: Total number processed: 1
gpg:               imported: 1  (RSA: 1)
gej@mercure:~$ sudo apt-get update
Hit http://nl.archive.ubuntu.com maverick Release.gpg
http://nl.archive.ubuntu.com/ubuntu/ maverick/main
Translation-en
...

Hit http://linux.dropbox.com maverick/main amd64 Packages
Fetched 12.5kB in 0s (15.1kB/s)
Reading package lists... Done
gej@mercure:~$ sudo apt-get install libv4l-0
Reading package lists... Done
Building dependency tree
Reading state information... Done
The following extra packages will be installed:
  lib32v4l-0
The following packages will be upgraded:
  lib32v4l-0 libv4l-0
2 upgraded, 0 newly installed, 0 to remove and 0 not upgraded.
Need to get 191kB of archives.
After this operation, 32.8kB of additional disk space will be used.
Do you want to continue [Y/n]?
Get:1 http://ppa.launchpad.net/libv4l/ppa/ubuntu/ maverick/main lib32v4l-0 amd64 0.8.1-2~mmv4l1 [80.7kB]
Get:2 http://ppa.launchpad.net/libv4l/ppa/ubuntu/ maverick/main libv4l-0 amd64 0.8.1-2~mmv4l1 [110kB]
Fetched 191kB in 0s (367kB/s)
(Reading database ... 193571 files and directories currently installed.)
Preparing to replace lib32v4l-0 0.6.4-1ubuntu1 (using .../lib32v4l-0_0.8.1-2~mmv4l1_amd64.deb) ...
Unpacking replacement lib32v4l-0 ...
Preparing to replace libv4l-0 0.6.4-1ubuntu1 (using .../libv4l-0_0.8.1-2~mmv4l1_amd64.deb) ...
Unpacking replacement libv4l-0 ...
Setting up libv4l-0 (0.8.1-2~mmv4l1) ...
Setting up lib32v4l-0 (0.8.1-2~mmv4l1) ...
Processing triggers for libc-bin ...
ldconfig deferred processing now taking place
gej@mercure:~$
Natuurlijk kun je hem ook via synaptic installeren (en updaten naar 0.83).

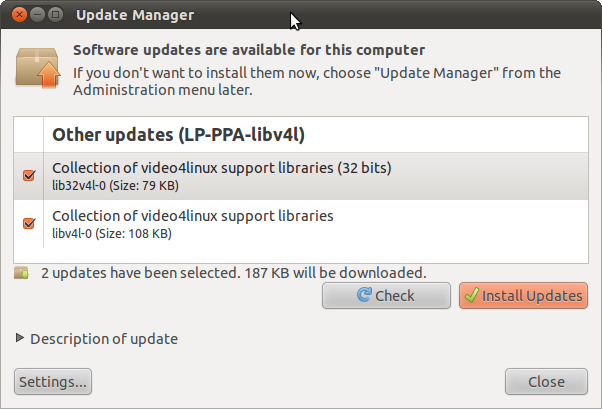

versie 0.83

Code:
gej@mercure:~$ LD_PRELOAD=/usr/lib/libv4l/v4l1compat.so cheese
Cheese werkt!!

Sound

By default doet de sound het, maar de headphone niet. Na flink wat spelen (ook ergens gelezen dat de alsa-backports weggegooid moesten worden) de volgende optie:

Edit de /etc/modprobe.d/alsa-sound.conf en voeg toe:

Code:
gej@mercure:~$ sudo vi /etc/modprobe.d/alsa-base.conf

...
options snd-hda-intel model=auto

De settings van de sound kunnen default blijven staan dus:

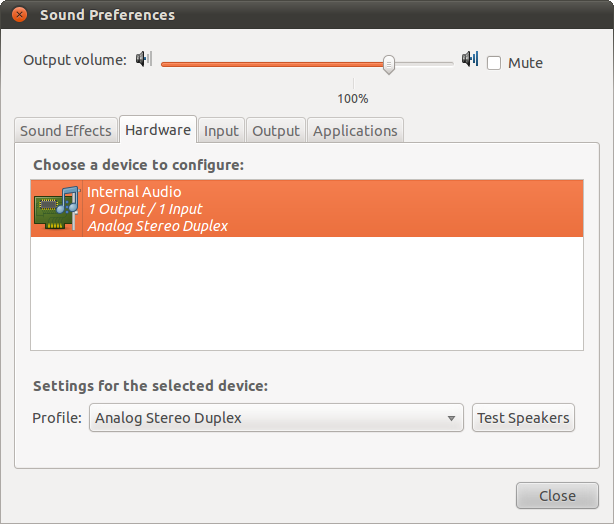

sound preferences U53jc

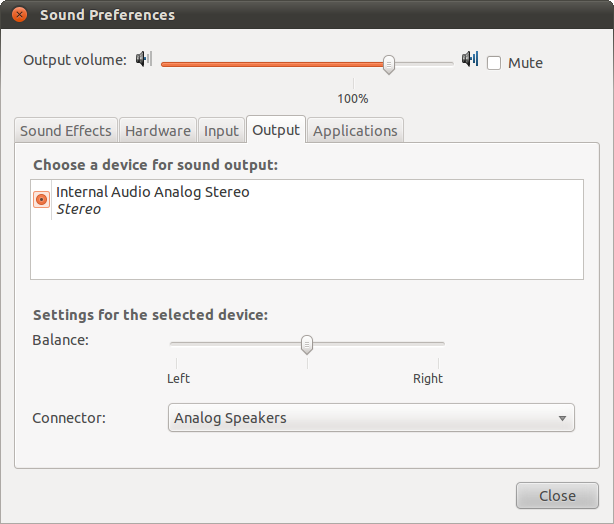

sound preferences U53jc

Als je nu de hoofdtelefoon erin steekt, gaat hij automatisch over. Je hoeft dus geen wijzigingen in de connector te maken.

Boot from sdcard

Helaas boot het notebook niet van sd. Je kunt natuurlijk wel een extra menu item in grub toevoegen om te booten van een ubuntu versie die op sd staat.

Code:
gej@mercure:~/$ sudo vi /etc/grub.d/40_custom
....

menuentry "ubuntu sd" {

        insmod "ext2 mmc_core mmc_block sdhci sdhci-pci"

        set root=(hd0,3)

        linux /boot/vmlinuz-2.6.35-25-generic root=UUID=349fd09b-11e5-4ac3-90d4-aef629e803e7 ro

        initrd /boot/initrd.img-2.6.35-25-generic

}
Als je ubuntu installeert, heb je een /boot/grub/grub.cfg op de sd staan.
Gebruik van deze versie de UUID. Zorg ervoor dat je de in de /boot op de harddisk waar grub vanaf start, de juiste kernel (vmlinuz) en de initrd hebt staan.
In mijn geval staat /boot op de 3e partitie van de /dev/sda harddisk (set root=(hd0,3))
Daarna heb je wat extra modules nodig.

Andere plaatjes:

U53jc

U53jc

U53jc

U53jc


U53jc

U53jc


Probleempjes

Problemen die ik nog niet aan het werk krijg:
videocard nvidia drivers onder ubuntu
